Remote Filter Skimmers



Increase the Filter Tank flow-capacity by utilizing the “more capacity” port(s) on the Filter Tanks to connect additional filtered water. Depending on the Filter Skimmer selected, additional skimming can occur at the bottom of the pond or on the surface.



Remote Filter Skimmers allow for enhanced debris skimming by pulling water from different areas of the water feature.

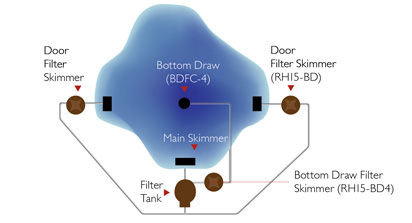

Large Water Feature Schematic (top view)

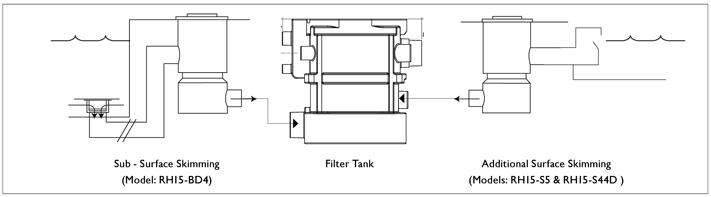

Utilize the bottom port(s) on the Filter Tank to provide additional filtered water flow to the pump chamber. In the diagram to the left, water flows into the Filter Tank through the main skimmer port, two Remote Filter Skimmers and, a Bottom Draw Filter Skimmer.

Bottom Draw Filter-Skimmer

Model: RH15-BD4




For sub-surface skimming

Pull water from the pond floor and increase the Filter Tank flow capacity

GPM: 80

Connection: 4"

Included Components:
1 – Filter Housing
2 – 4 x 4 Flex-Coupling
3 – 4” 90
2 – 4 x 24” intake
1 – 4” Liner Connection Kit
1 – Bottom Draw Flow Cap

Filter-SkimmerOnly

Model: RH15




Add additional skimming and flow capacity to the Filter Tank

GPM: 80

Connection: 4"

Included Components:
1 – Filter Housing
2 – 4 x 4 Flex-Coupling
1 – 4 x 24” Intake Pipe
1 – 4” Liner Connection Kit

Door Filter-Skimmer

Model: RH15-S44D




Self adjusting surface skimming

Add additional skimming and flow capacity to the Filter Tank

GPM: 80

Connection: 4"

Included Components:
1 – Filter Housing
2 – 4 x 4 Flex-Coupling
1 – 4 x 24” intake
1 – 4” Liner Connection Kit
1 – 80 GPM Door Skimmer



Filter Baskets and Replacement Screens (sold separately)

Use the same mesh size in both the Filter Skimmer and the Filter Tank.

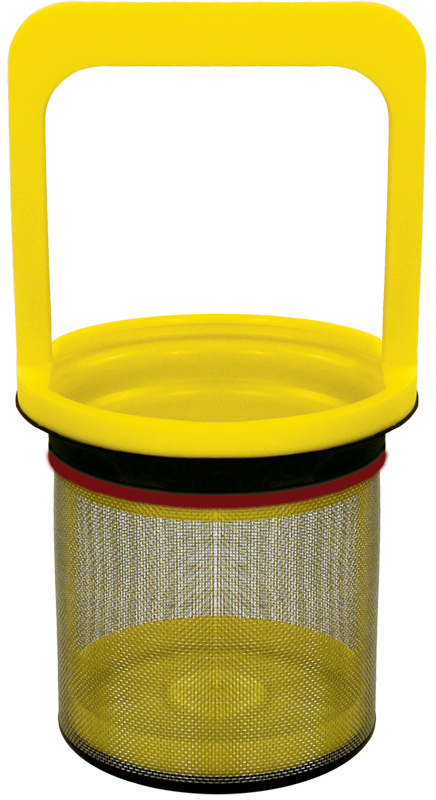

Model: E24-40

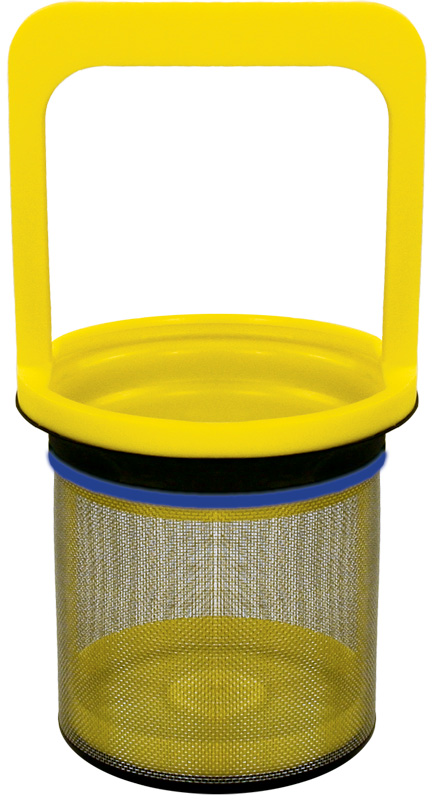

Model: E20-40

Model: ES24-40

Model: ES20-40

Fine Mesh
Filter Basket
Medium Mesh
Filter Basket
Fine Mesh
Replacement
Screen
Medium Mesh
Replacement
Screen

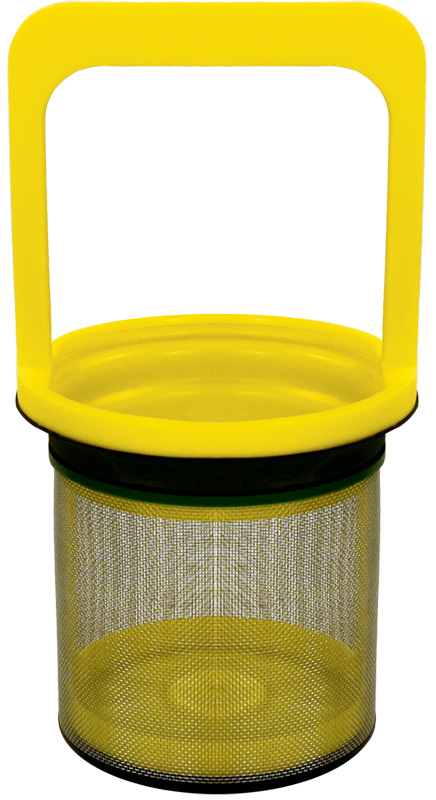

Model: E10-40

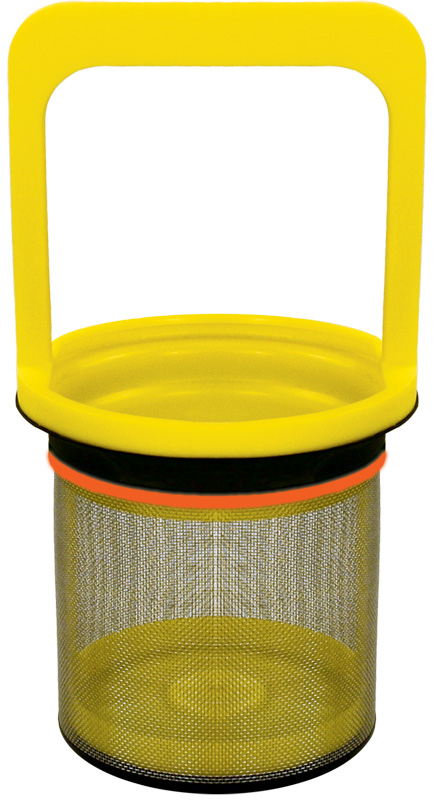

Model: E6-40

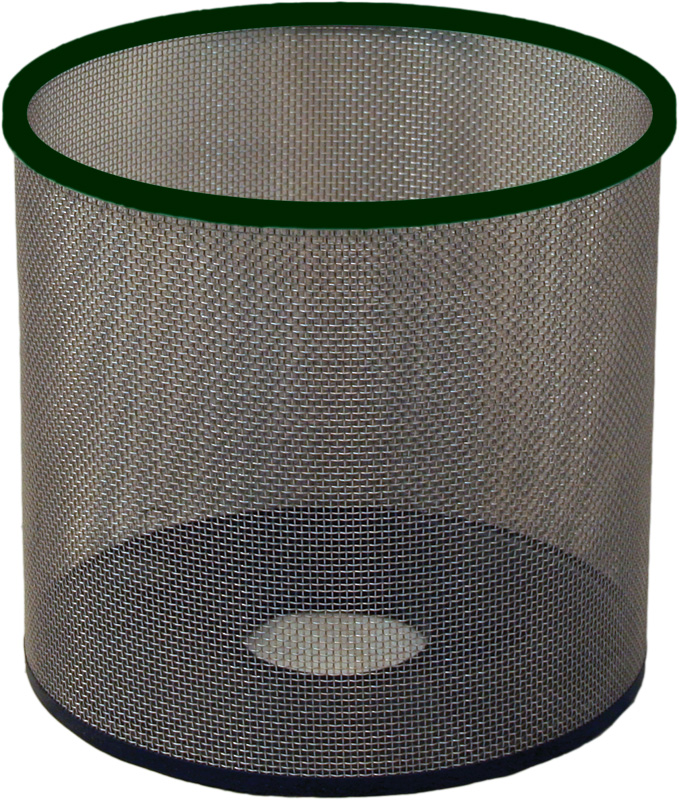

Model: ES10-40

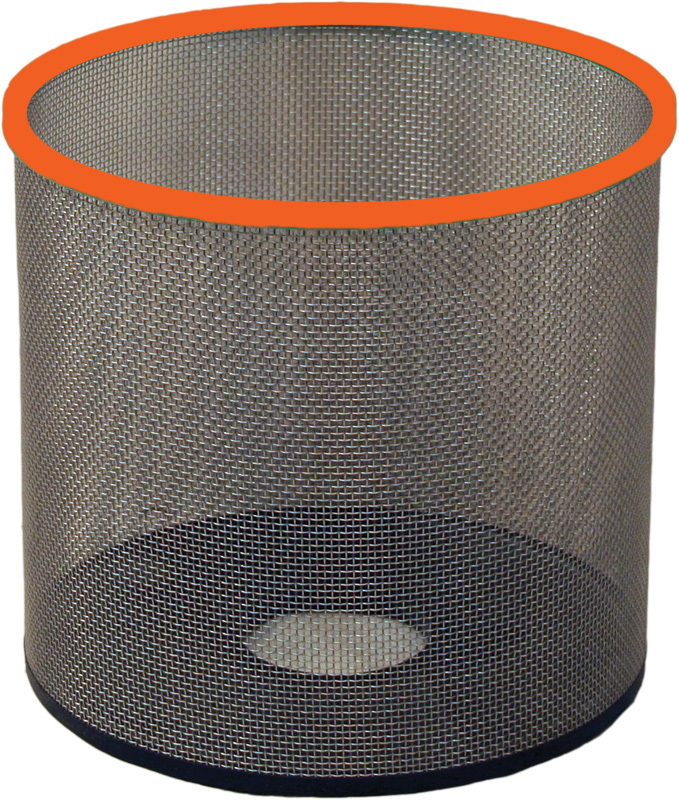

Model: ES6-40

Coarse Mesh
Filter Basket
Extra Coarse
Mesh Filter Basket
Coarse Mesh
Replacement
Screen
Extra Coarse
Mesh Replacement
Screen





Remote Filter Skimmer Dimensions
